LZ1200 Concrete PC Bar Production Line

Name: LZ1200 Concrete PC Bar Production Line
Brand: suntech
Price: 20000 USD

LZ1200 Concrete PC Bar Production Line Manufactures

Brand Name : suntech

Model Number : 1200

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Price : USD+20000+SET

Supply Ability : 100 SET PER YEAR

Delivery Time : 120DAYS

Packaging Details : Pallet

Application : PC Bar

Material : 30MnSI,30Si2Mn

Color : Blue

Model : 1200

Auto : Automatic

Speed : 60m/s

Contact Now

I. Whole Work Flow:

Pay off → Wire arranging→ Mechanical descaling→ Horizontal type wire drawing and forming machine → Vertical and horizontal straightening → Three roll clamping and driving→ Cleaning unit →Heating No.1 →Heating No.2 →Heating No.3 → Heat Preservation → Cooling for Quenching → Induction Tempering → Heat Preservation →Cooling for Tempering →Three roll clamping and driving → Shearing → Wire separating → Wire take-up

II. Main Technical Parameters:

No.	Item	Specification
1	Raw material	30MnSi,30Si2Mn and other alloy spring steels
2	Diameter	Φ 7.0-13.0mm
3	Working speed	90-100m/min for type φ 7.1mm; 80-90m / min for type φ9.0mm; 65-70m/min for type φ 10.7mm; 40-45m/min for type φ 12.6mm.
4	Induction quenching temp.	≤950ºC constant and adjustable
5	Induction tempering temp.	≤450ºC constant and adjustable
6	Temp. control accuracy	≤ ±5ºC
7	Take-up coil dimension	φ1800-φ2400mm
8	Pay-off	Horizontal rotating type pay off
9	Center elevation	1000mm
10	Production method	Continuous production
11	Finished products	1) Products keep consistence with "GBT5223.3-2005" and "JISG3137-1994"

LZ1200 Concrete PC Bar Production Line

III. IGBT Induction heating power supply feature:

1. Voltage/Current double closed circuit control, this mode has constant voltage operation feature, it means the voltage of inductors will not be influenced by Inlet voltage/Load resistor, etc. Constant voltage make the load heating most stable

2. Adopt the most advanced control technology in the world. By a intelligent programming device CPLD, make IGBT induction heating power supply has the function of Fixed-angle&Phase locking/Frequency automatic tracking, etc. This design can improve the stability and efficiency. Because the machine has protect function of Over-frequency or Low-frequency unlock, it can accurately protect wire heating inductors from short circuit and open circuit fault

Product Tags:

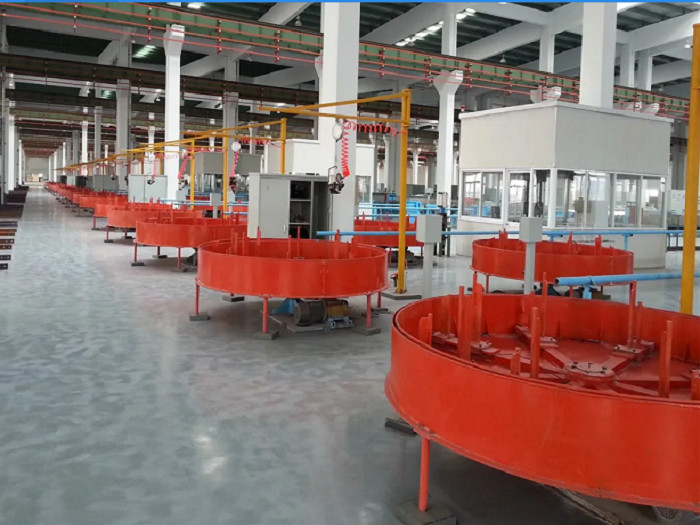

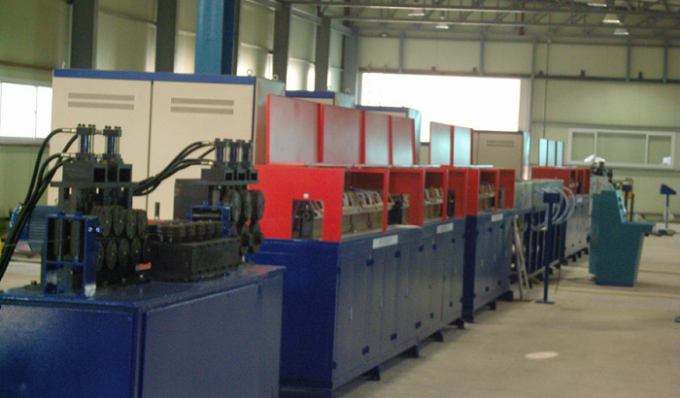

LZ1200 Concrete PC Bar Production Line Images
